Tool Makers Vise VMV-60

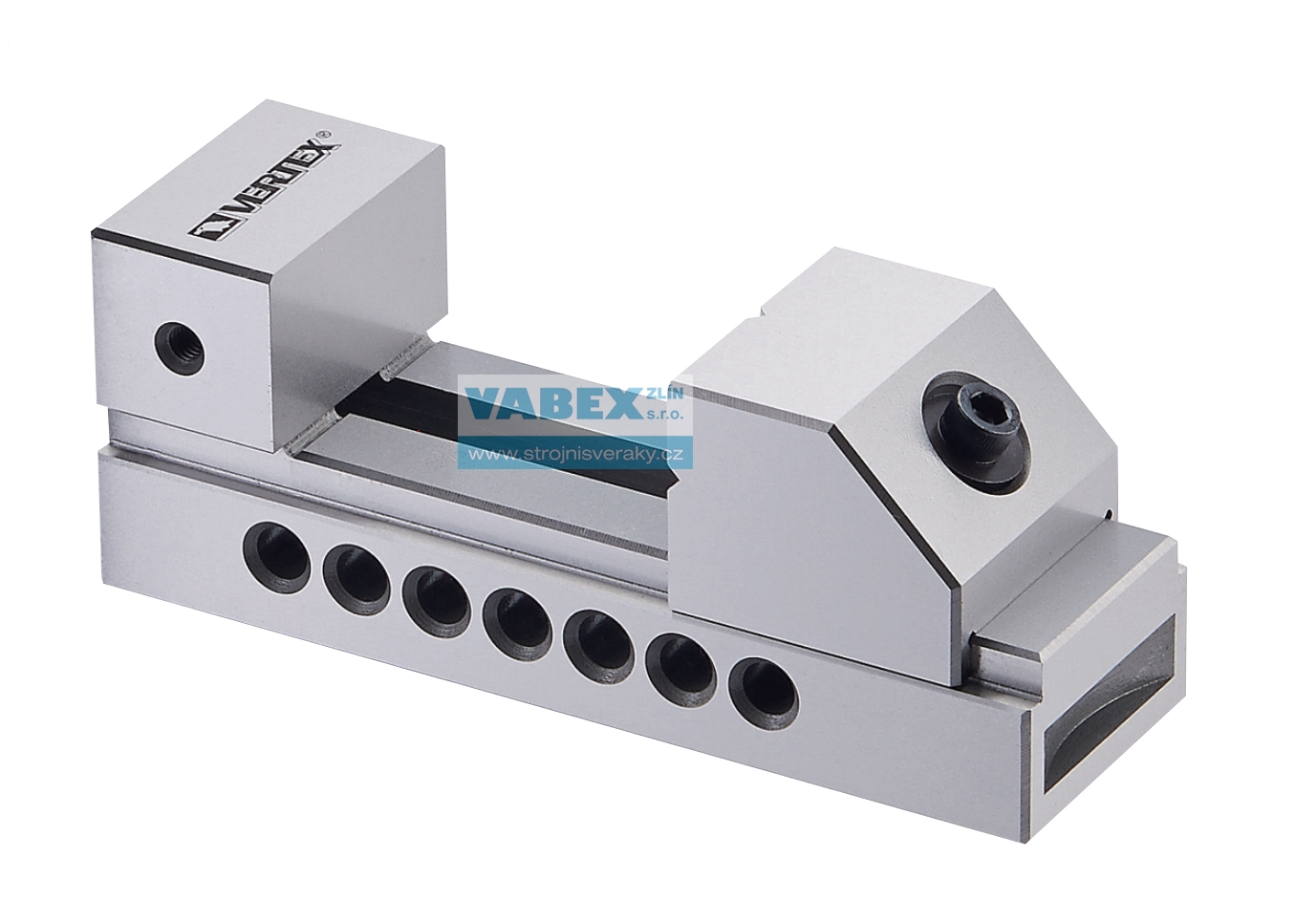

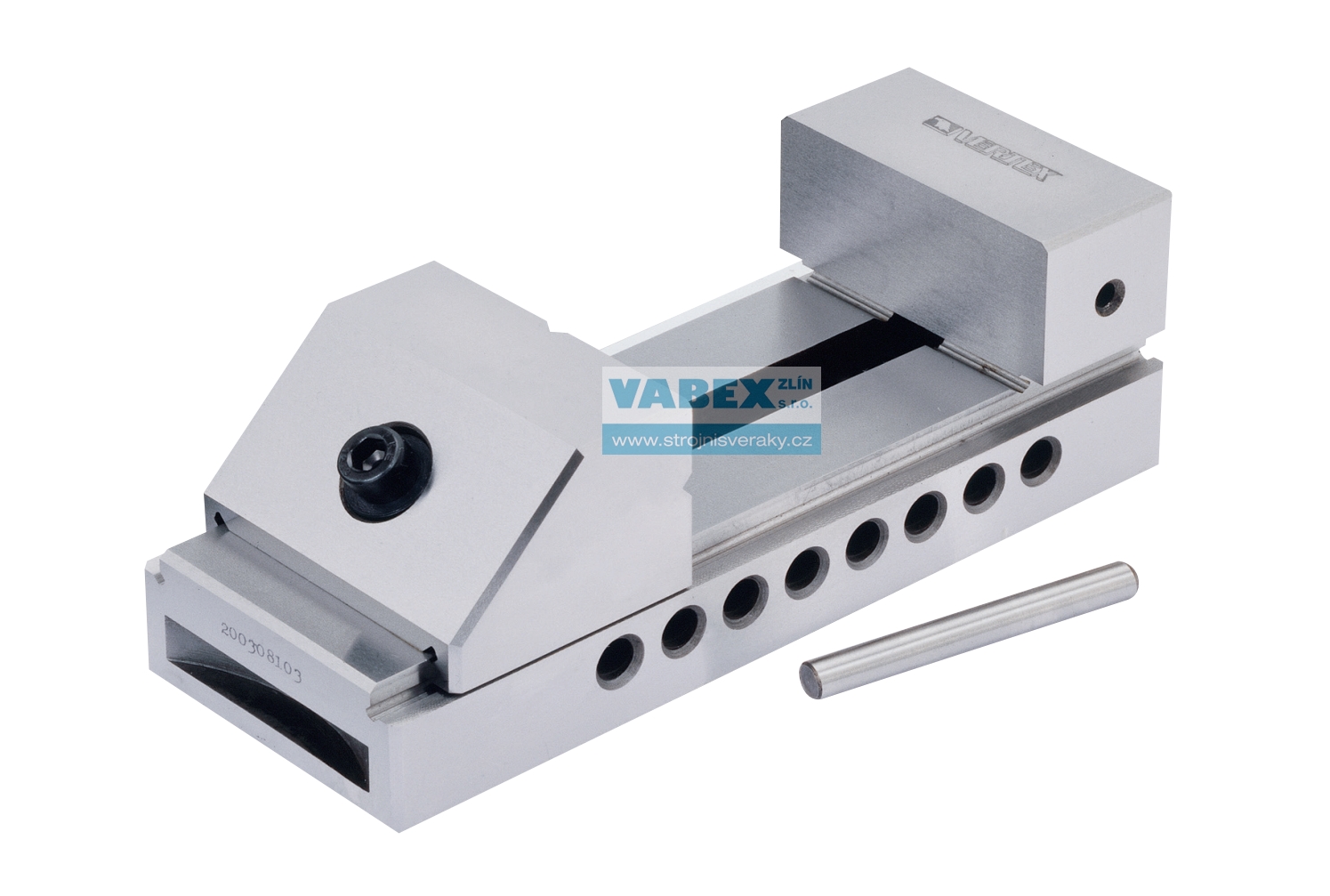

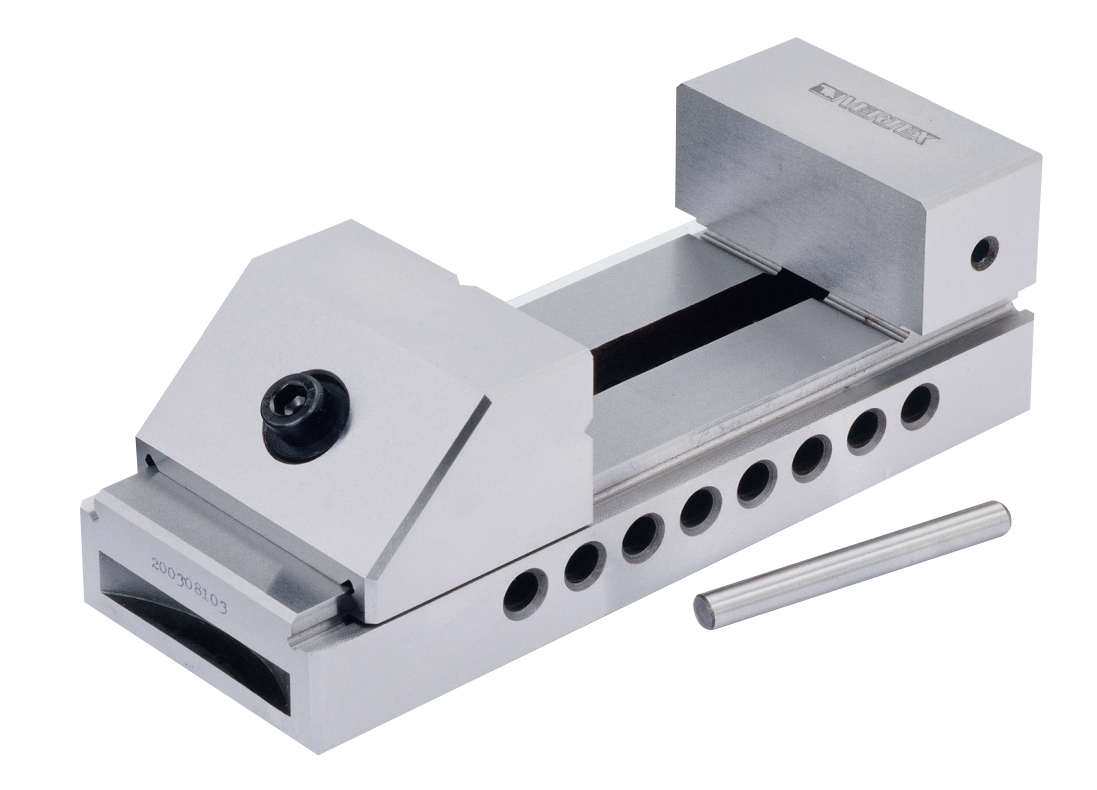

Precision Grinding Vice VMV-60

The VMV-60 is a compact and highly precise grinding and inspection vice designed for fine tasks in measuring, checking, and grinding. Due to its extreme accuracy, quality hardened construction, and minimal size, it is the ideal choice for toolmakers, laboratories, and precision workshop applications.

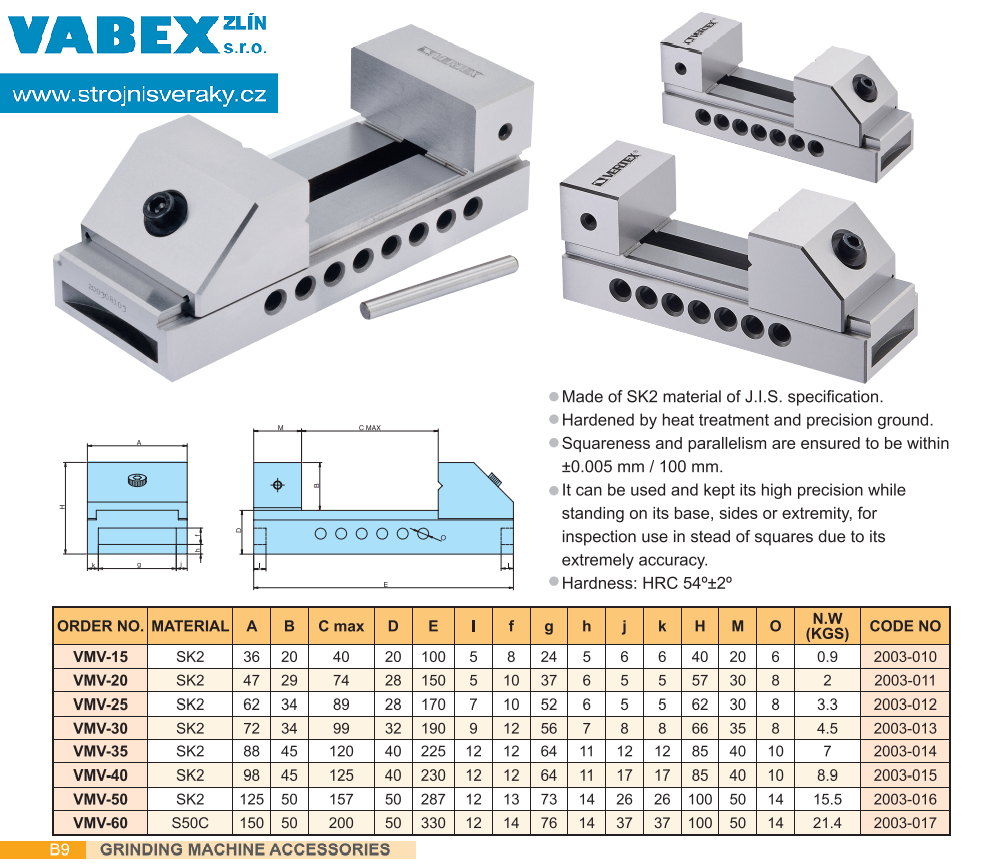

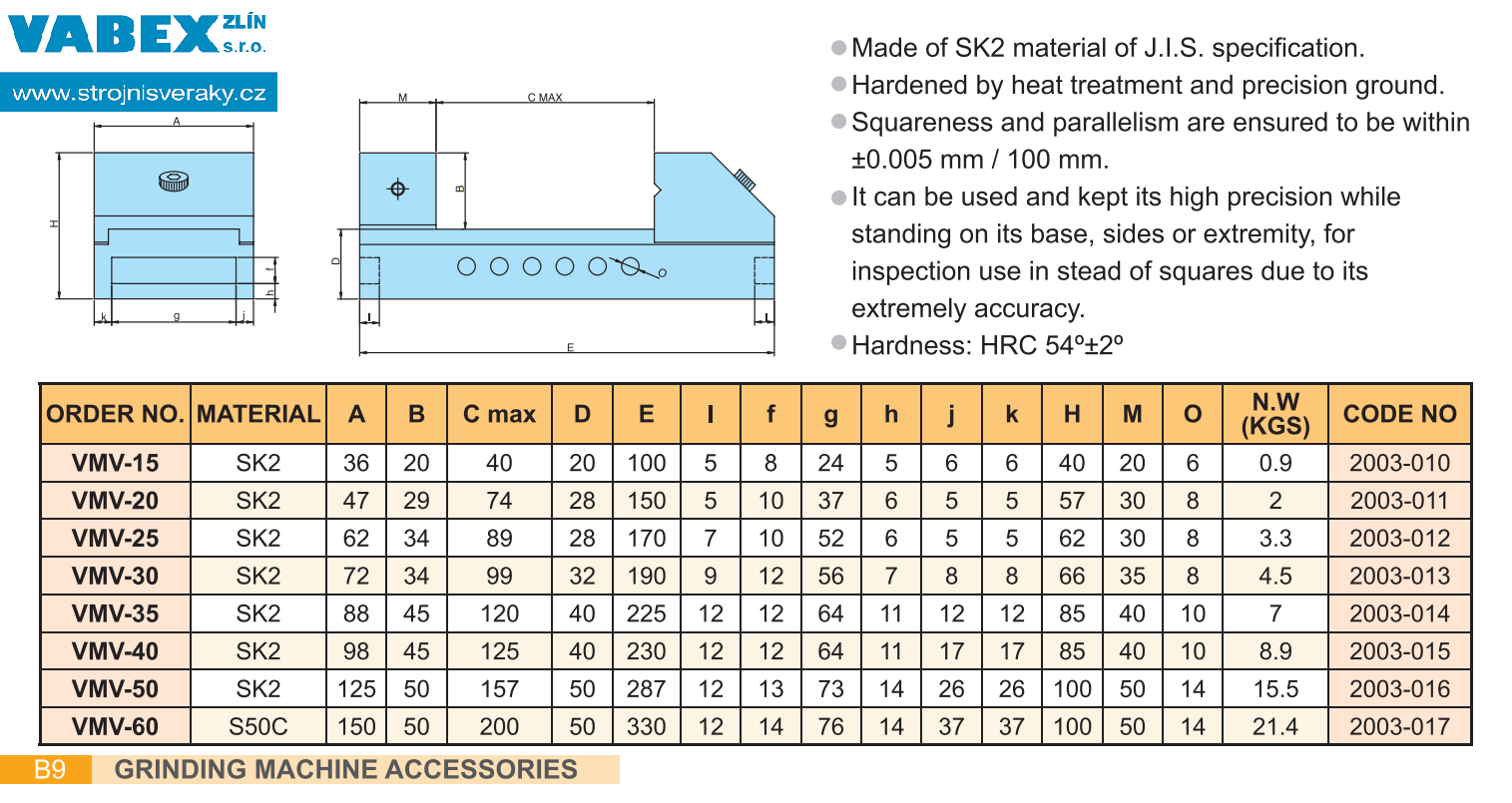

Key Features

• Accuracy ±0.005 mm / 100 mm

• Maximum opening 200 mm

• Jaw width 150 mm

• Overall length 330 mm

• Weight 21.4 kg

• Material tool steel SK2

• Hardness HRC 54° ±2°

Construction and Material

• The vice is made from high-quality tool steel SK2 with a hardness of HRC 54°, ensuring excellent wear resistance and long lifespan even with frequent use

• All working surfaces of the vice are precision ground and hardened, ensuring stability, accuracy, and reliability during every use

• The compact design allows for use in limited working spaces, such as on measuring instruments or inspection stations

Included in the package

• Precision vice VMV-60 in protective packaging

Advantages

• Ideal for fine tasks, precise measurement, grinding, and checking of small parts

• Extremely precise machining ensures repeatability and consistent results

• Low weight and compact dimensions make handling and transport easier

• Suitable for tool rooms, metrology laboratories, and precision manufacturing

Warranty and Service

We offer both warranty and post-warranty service for VMV-60 vices, along with technical advice for their use. This model represents the ideal balance of price, performance, and accuracy, supported by expert customer service and long-term reliability.
